OUR PRODUCTS

Shunt Trip & Closing coil

Electromagnet with Terminal Box

Trip Coil

Trip Coil

Solenoid Interlock

Hubmagnet

Operating Coil

Coil Magnet

Solenoid Capswitcher

Rotary Auxiliary Switch with Butting Type of Contacts

Rotary Auxiliary Switch with Wiping Type of Contacts

Rotary Switch-CR90V

Shunt Trip & Closing coil

IMCL01

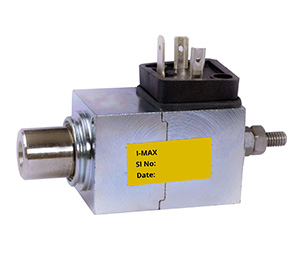

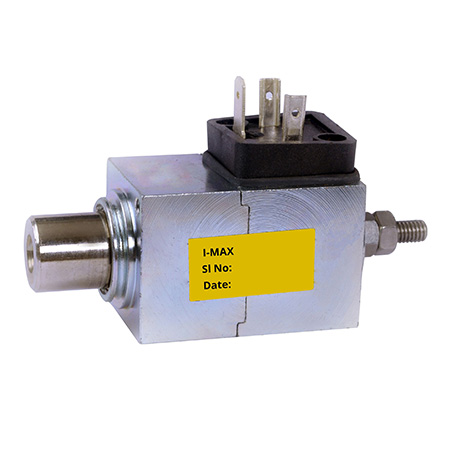

Electromagnet with Terminal Box

IMCL02

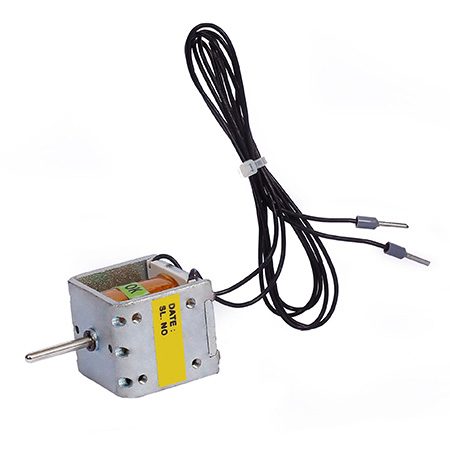

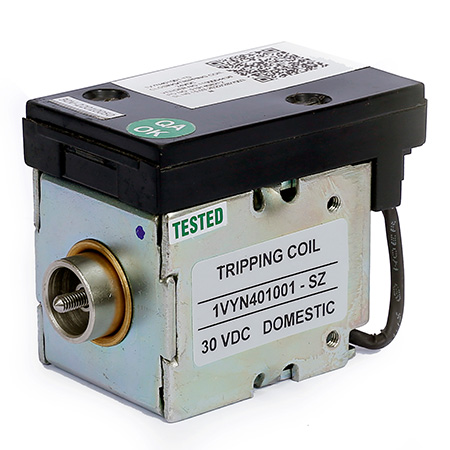

Trip Coil

IMCL03

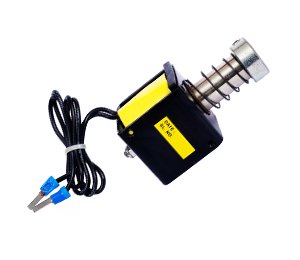

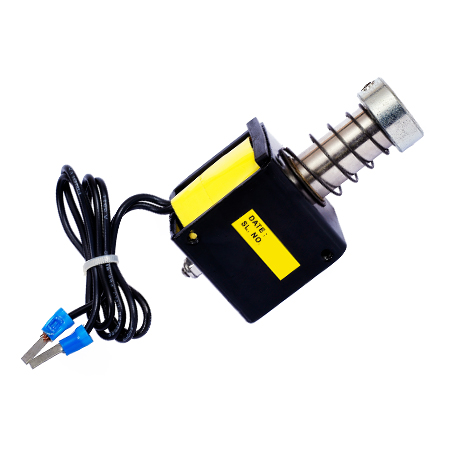

Trip Coil

IMCL04

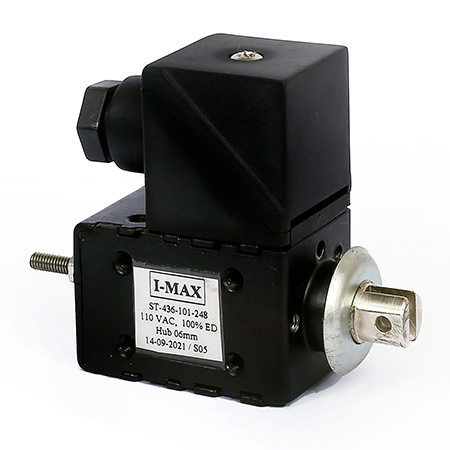

Solenoid Interlock

IMCL05

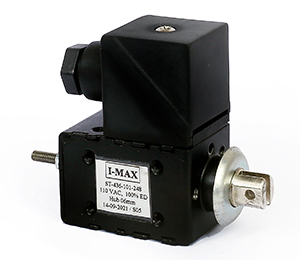

Hubmagnet

IMCL06

Operating Coil

IMCL07

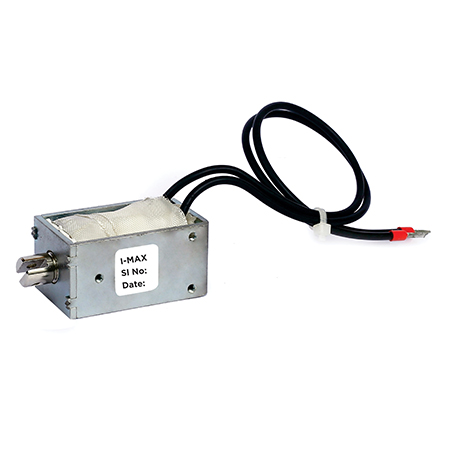

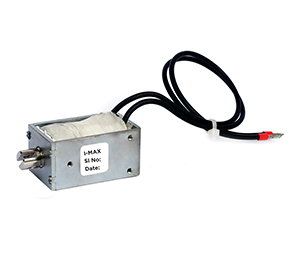

Coil Magnet

IMCL08

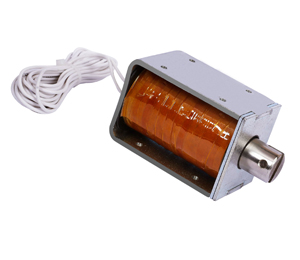

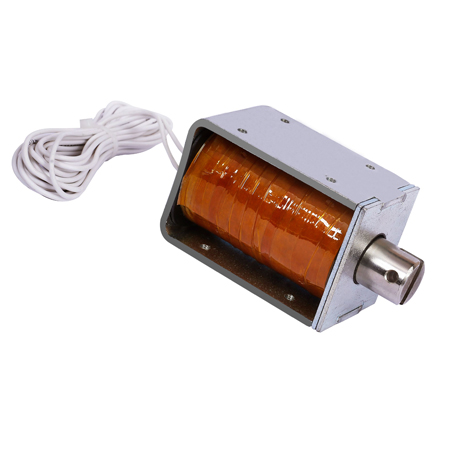

Solenoid Capswitcher

IMCL09

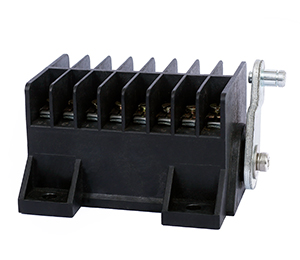

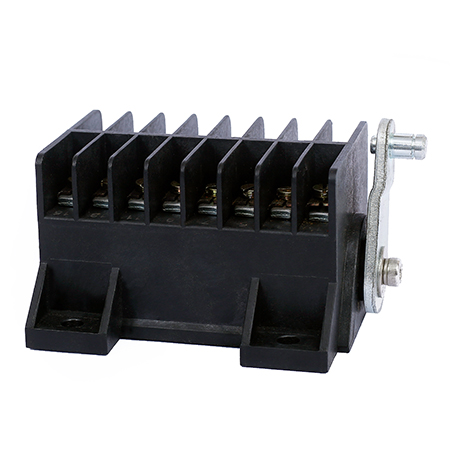

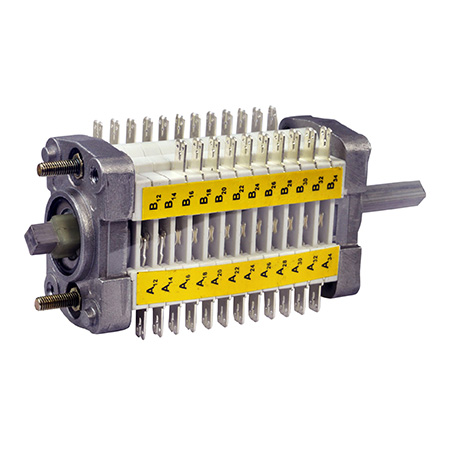

Rotary Auxiliary Switch with Butting Type of Contacts

IMSW01

Rotary Auxiliary Switch with Wiping Type of Contacts

IMSW02

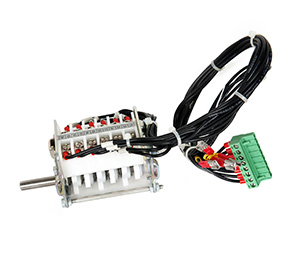

Rotary Switch-CR90V

IMSW03

Solenoid Interlock Suitable For DC Auxiliary Supply

PRODUCT SPECIFICATION

Product Description	Product Code	Voltage Rating	Dimensions (in mm)	Stroke Length (in mm)
Shunt Trip & Closing Coil	IMCL01	24v-230v AC/DC	62x42x48	7
Electromagnet With terminal Box	IMCL02	24v-230v AC/DC	32.3x32.3x48	6
Trip coil	IMCL03	24v-230v AC/DC	60x36x36	6
Trip coil	IMCL04	24v-230v AC/DC	42x48x40	9
Solenoid Interlock	IMCL05	24v-230v AC/DC	44x38x30	4
Hubmagnet	IMCL06	24v-230v AC/DC	32x32x28	4
Opetating Coil	IMCL07	24v-230v AC/DC	48x50x100	25
Coil Magnet	IMCL08	24v-230v AC/DC	50x30x25	10
Solenoid Capswither	IMCL09	24v-230v AC/DC	72x52x44	10

Product Description	Product Code	Rated Opetaion Voltage	Rated Breaking Capacity	L/R Ratio	Non/Nc Combination	Mechanical Life	Mechanical Endurance With Electrical
Rotary Auxilary Switch With Butting Type Of Contacts	IMSW01	24v-230v AC/DC	2A@ 110V DC 2A@110 AC 5A@110 AC	20ms	1No+1Nc to 10No to 10Nc	1,00,000 cycles	10,000cycles
Rotary Auxilary Switch With Wipping Type Of Contacts	IMSW02	24v-230v AC/DC	2A@ 110V DC 2A@110 AC 5A@110 AC	20ms	2No+2Nc to 26No to 26Nc	1,00,000 cycles	10,000cycles
Rotary Switch-CR90V	IMSW03	24v-230v AC/DC	2A@ 110V DC 2A@110 AC 5A@110 AC	20ms	4No+4Nc 4No+3Nc+1P 3No+1P+4Nc	1,00,000 cycles	10,000cycles

The products developed, manufactured and supplied by I-MAX INNOVATION PRIVATE LIMITED caters to switchgear and control gear industry and the high level of quality which is built into the product has earned complete satisfaction to the customer.
